Kev Cai Automotive Yas Txhaj Moulding Rau Audi Sab Hauv Cheeb Tsam

Automotive tha xim sab hauv feem ntau muaj cov kev cai tshwj xeeb rau qhov ntev, sib dhos, xaiv cov khoom siv, thiab qhov chaw tiav. Ib qho kev sib txawv me me hauv qhov mounting feature lossis kev sib txuas ntawm qhov taw tes tuaj yeem cuam tshuam li cas cov khoom sib haum nrog cov khoom nyob ib puag ncig. Vim li no, pwm tsim thiab txheej txheem kev npaj yuav tsum tau them nyiaj rau daim ntawv thov tiag tiag ua ntej pib tsim khoom.



Deep Mould muabkev cai automotive yas txhaj tshuaj moldingrau Audi-cov haujlwm ntsig txog, raws li cov neeg siv khoom kos duab thiab kev qhia tshwj xeeb. Txoj haujlwm no koom nrog lub tsheb sab hauv cov khoom siv pwm siv PA66+GF30% cov khoom, plaub- kab noj hniav layout, thiab INCOE kub khiav system. Cov ntsiab lus hauv qab no qhia txog kev teeb tsa pwm thiab cov kev txiav txim siab tseem ceeb koom nrog hauv hom kev cai cuab yeej cuab tam no.



Project Specifications thiab Pwm Configuration

Qhov project tsom rau kev tsim pwm rau automotive sab hauv accessories. Cov cuab yeej teeb tsa suav nrog plaub kab noj hniav, plaub lub rooj vag valve, thiab plaub lub tog raj kheej Merkel roj.

Lub ntsiab specifications yog raws li nram no:

Yam khoom	Specification
Xaus cov neeg siv khoom	Audi
Daim ntawv thov	Automotive sab hauv accessories
Cov khoom siv yas	PA 66+GF30%
Cavity configuration	1 × 4 kab noj hniav
Pwm steel	SIB 1.2344
Hlau hardness	HRC 48–52
Pwm qhov ntev	500 × 600 × 451 hli
Pwm hnyav	9 80kg
Lub sijhawm ua haujlwm	45 noj
Pwm txheej txheem	EQ / HASCO
Kub khiav system	INCOE nrog plaub lub rooj vag valve
Cov khoom siv ntxiv	Plaub Merkel roj thooj voos kheej kheej

Cov ntsiab lus no muab cov ntaub ntawv siv rau cov cuab yeej siv tsheb zoo sib xws. Txawm li cas los xij, pwm specifications txawv nrog ib feem geometry, kev sib dhos yuav tsum, ntim ntau lawm, thiab cov txheej txheem molding xaiv. Ib txoj haujlwm tshiab yog li xav tau nws tus kheej kev tshuaj xyuas ntau dua li tsuas yog luam ib qho kev tsim pwm uas twb muaj lawm.



Xaiv cov khoom siv rau PA66+GF30% Cheebtsam

Cov khoom siv tshwj xeeb rau txoj haujlwm no yog PA66+GF30%, iav- fiber ntau- siv zog nylon siv rau hauv engineering daim ntawv thov qhov kev nruj thiab qhov ntev yuav tsum tau ua tib zoo xav.



Piv nrog rau PA66 tsis muaj zog, iav- fiber reinforcement hloov pauv cov khoom ntws thiab kev coj tus cwj pwm. Fiber orientation kuj tuaj yeem cuam tshuam qhov kev ruaj ntseg, tshwj xeeb tshaj yog nyob ib puag ncig tav, mounting nta, thiab thaj chaw nrog cov phab ntsa sib txawv. Yog li ntawd, kev xaiv cov khoom yuav tsum tau txiav txim siab nrog rau ib feem geometry thiab pwm tsim.



Raukev cai automotive yas txhaj tshuaj molding rau Audidaim ntawv thov, cov neeg siv khoom yuav tsum muab cov qib resin xav tau thiab txheeb xyuas qhov tseem ceeb ua ntej kev siv cuab yeej pib. Cov kws kho tsheb tuaj yeem tshuaj xyuas cov yam ntxwv uas yuav cuam tshuam rau kev sau, txias, shrinkage, thiab ib feem tso tawm.



Nws tseem yog ib qho tseem ceeb kom paub qhov txawv ntawm cov khoom siv nominal thiab qhov ua tau zoo ntawm qhov ua tiav molded. Cov txiaj ntsig tiag yog nyob ntawm qib resin, cov qauv tsim, kev ua haujlwm, thiab cov kev xav tau ntawm kev xeem. Cov yam tseem ceeb no yuav tsum tau lees paub thaum lub sijhawm txhim kho qhov project thiab kev ntsuas tus qauv.

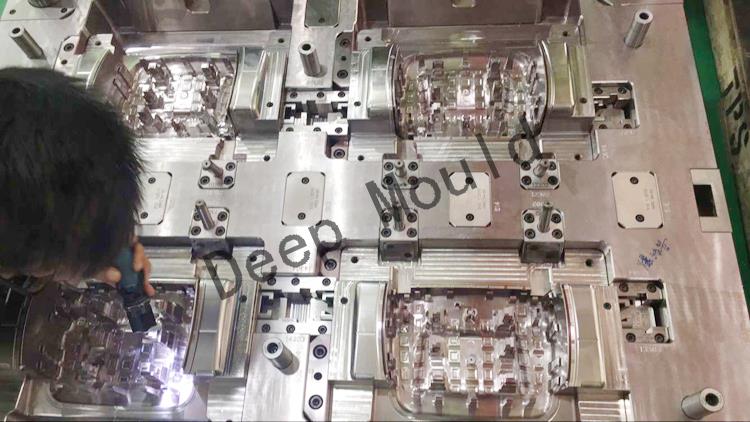

Plaub -Cavity Pwm Tsim thiab Kub Khiav System

Qhov project no siv plaub-kab kab noj hniav pwm los tsim plaub qhov hauv ib lub voj voog txhaj tshuaj, piv txwv tias txhua qhov kab noj hniav ua haujlwm raws li qhov xav tau. Qhov ntau-kab kab noj hniav layout tuaj yeem ua rau cov zis ntau ntxiv rau ib lub voj voog, txawm hais tias tag nrho cov khoom tsim tawm kuj nyob ntawm lub sijhawm voj voog, lub peev xwm ntawm lub tshuab, cua txias, thiab cov txheej txheem ruaj khov.



Cov pwm suav nrog INCOE kub khiav system nrog plaub lub rooj vag valve. Lub rooj vag valve tswj qhov qhib thiab kaw ntawm ib tus neeg lub rooj vag qhov chaw, muab cov txheej txheem molding ntau tswj cov khoom nkag mus rau hauv cov kab noj hniav. Nyob ntawm tus qauv tsim, qhov rooj tso chaw thiab lub sijhawm tuaj yeem cuam tshuam cov kab weld, qhov tsos, thiab cov khoom ntws.



Cov cuab yeej tseem suav nrog plaub lub tog raj kheej roj Merkel. Lawv configuration yuav tsum tau raws li cov pwm qhov yuav tsum tau txav thiab kev khiav hauj lwm ib ntus. Thaum lub sij hawm tsim qauv, tus tsim pwm yuav tsum xav txog yuav ua li cas cov txheej txheem no cuam tshuam nrog cov kab noj hniav layout, ejection system, thiab cov pwm nyob ib puag ncig.



Rau qhov precision automotive txhaj pwm, cov ntsiab lus tseem ceeb vim tias kev hloov pauv rau ib feem ntawm cov qauv tuaj yeem cuam tshuam rau lwm yam cuab yeej. Kev tshuaj xyuas cov pwm tsim ua ntej machining pab qhia meej txog cov haujlwm uas yuav tsum tau ua thiab txheeb xyuas cov kev cuam tshuam lossis kev txhawj xeeb txog kev saib xyuas.



Kev cai Mould Manufacturing rau Audi Sab hauv Cheebtsam

Automotive tha xim sab hauv tuaj yeem suav nrog cov khoom txiav, lub khob ntim khoom, cov khoom siv cua txias, thiab lwm yam khoom siv nyob ib puag ncig cov neeg caij tsheb. Txhua daim ntawv thov nthuav tawm cov qauv tsim sib txawv. Qee qhov yuav tsum tau ua kom pom kev zoo ib yam, thaum lwm tus nyob ntawm qhov tseeb ntawm kev txhim kho, clips, tav, lossis clearances nrog cov khoom nyob ib sab.



Yog li ntawd, kev cai automotive pwm tsim yuav tsum pib nrog cov khoom siv tiag tiag thiab tsim. Tus neeg muag khoom yuav tsum tau tshuaj xyuas 2D kos duab lossis 3D CAD cov ntaub ntawv, cov lus qhia tshwj xeeb, qhov tseem ceeb ntawm kev ua kom tiav, thiab qhov xav tau ntau lawm ua ntej tshaj tawm cov cuab yeej siv.



Deep Mould txhawb kev tsim pwm tsim thiab tsim, yas txhaj tshuaj molding, CNC machining, 3D luam ntawv, thiab nqus casting. Lub tuam txhab tseem muaj cov txheej txheem hlau ua haujlwm xws li stamping, dabtsi yog khoov, vuam, EDM, hlau txiav, sib tsoo, thiab kev sib dhos precision.



Cov kev pabcuam no tuaj yeem txhawb nqa ntau theem ntawm ib qhov project, los ntawm kev ntsuas tus qauv mus rau kev tsim pwm thiab molded -ib feem ntau lawm. Cov txheej txheem tsim nyog yog nyob ntawm cov khoom siv geometry, cov khoom siv, kom muaj nuj nqis, thiab lub sijhawm xa khoom xav tau.



Deep Mould's Automotive Manufacturing Capabilities

Automotive tooling tej yaam num koom nrog ntau tshaj machining pwm rau ib tug kos duab. Cov neeg yuav khoom thiab cov neeg muag khoom kuj yuav tsum pom zoo rau cov qib khoom, qhov loj me, cov qauv tshuaj ntsuam xyuas, thiab kev cia siab ntau lawm. Kev sib txuas lus meej meej thaum pib pab ob tog nkag siab txog cov kev xav tau thiab tswj kev tsim cov kev hloov pauv thaum tsim kho.



Founded hauv Dongguan xyoo 2016, Deep Mould tau txav mus rau nws qhov chaw tsim khoom tam sim no hauv Humen hauv 2020. Lub chaw npog ntau tshaj 6,000 square meters thiab muaj ib pab neeg ntawm ntau tshaj 80 tus neeg ua haujlwm. Lub tuam txhab ua haujlwm ntawm kev cai yas thiab hlau ua haujlwm rau tsheb, kho mob, hluav taws xob, khoom siv hauv tsev, thiab kev siv tshuab.



Rau kev cai automotive yas txhaj tshuaj molding rau Audi tej yaam num, Deep Mould tuaj yeem tshuaj xyuas cov neeg siv khoom kos duab thiab sib tham txog cov qauv pwm, cov khoom yuav tsum tau ua, thiab kev tsim khoom. Pab neeg no tseem npaj los teb cov lus nug thawj zaug hauv 24 teev thiab muab cov lus teb raws sij hawm rau cov lus nug txog kev siv pwm thaum tsim pwm.



Thov kev cai Mould Quotation

Ua ntej thov cov lus hais, npaj cov kos duab kos duab, qib qib resin, kwv yees ntau lawm, kev kam rau siab, qhov yuav tsum tau ua tiav, thiab hnub xa khoom. Yog tias cov khoom muaj cov kev sib dhos tshwj xeeb lossis cov kev xeem yuav tsum tau ua, suav nrog cov ntsiab lus no thiab.



Cov ntaub ntawv no yuav pab tus neeg muag khoom ntsuas cov cuab yeej uas yuav tsum tau ua thiab txheeb xyuas cov lus nug uas xav tau kev qhia meej ua ntej pib tsim khoom. Nws kuj tseem muab cov pab pawg yuav khoom kom muaj txiaj ntsig zoo rau kev sib piv cov lus hais los ntawm cov tuam txhab pwm sib txawv.



Deep Mould muab kev cai pwm tsim thiab kev txhaj tshuaj yas molding kev pabcuam raws li tus neeg siv khoom tsim thiab qhov project yuav tsum tau ua. Hu rau pab neeg no los tham txog kojkev cai automotive yas txhaj tshuaj molding rau Audiproject thiab tshuaj xyuas cov kev xaiv cuab yeej rau koj cov khoom.
